Additional Equipment Change Summery
Companionway hatch at top of stairs from aft cockpit to flybridge deck in the in the Flybridge, in the Aft Cockpit
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess in the in the Saloon and Dining, in the Forward VIP Stateroom, in the Mid Starboard Guest Cabin, in the Mid Port Guest Cabin, in the Aft Starboard Guest Cabin, in the Aft Port Guest Cabin, in the Stern Crew Mess, in the Electrical System
Bottom section of the stern moulding (level with the Bathing Platform when platform is in the up position) to be sprayed Navy Blue GCN/5810H to match the hull and platform in the in the Bathing Platform
All speakers to be recessed above headlining in the in the Saloon and Dining, in the Electrical System
Port side U shaped seating to be reduced fore and aft (by replacing Box B prt no: 317491 x2 with Box C prt no: 317492 x2) Spa tub moulding to be moved forward with seating in the in the Flybridge
Custom Flybridge table with GRP pedestal, natural teak top and 2 x folding leaves to fill shortened U-shaped seating in the in the Flybridge
Standard Specification
Hand-laid GRP; Gel coat including stripes; Vinylester skin coat with powderbound mat; Stitched multi-axial reinforced single skin bottom; Balsa cored hull topsides; PVC foam cored deck and superstructure; Hull stiffened with longitudinal stringers supported by transverse bulkheads and floors
Additional Items
Aft Capstans to be Muir
Hydraulics - Trac Star Digital fin stabiliser system (providing full roll control at speeds above 13 knots and significant roll reduction while at rest or anchor)
System includes Trac thrusters providing simultaneous, proportional thrusting 3 piece organic window sets with two opening port lights (Mid Starboard Guest Cabin, Mid Port Guest Cabin, Aft Starboard Guest Cabin and Aft Port Guest Cabin), in lieu of standard
Main deck day head option Twin Anchor arrangement at Bow (2 x Muir VRC4500 windlass in lieu of std. 1 X 80kg anchor with 100 metres 12mm diameter chain. 1 X 50kg anchor with 60 Meters 12mm of galvanised chain) in lieu of standard
Hydraulic Flybridge Crane for launch and recovery of Jet Ski - 400 kg maximum lift capacity
Underwater lights - xenon type (3 across transom, 1 aft each side)
Flybridge Cockpit Teak Decking
Flybridge wetbar upgrade with raised shelf (Clear Glass) and two bar stools in lieu of std
Five cabin layout

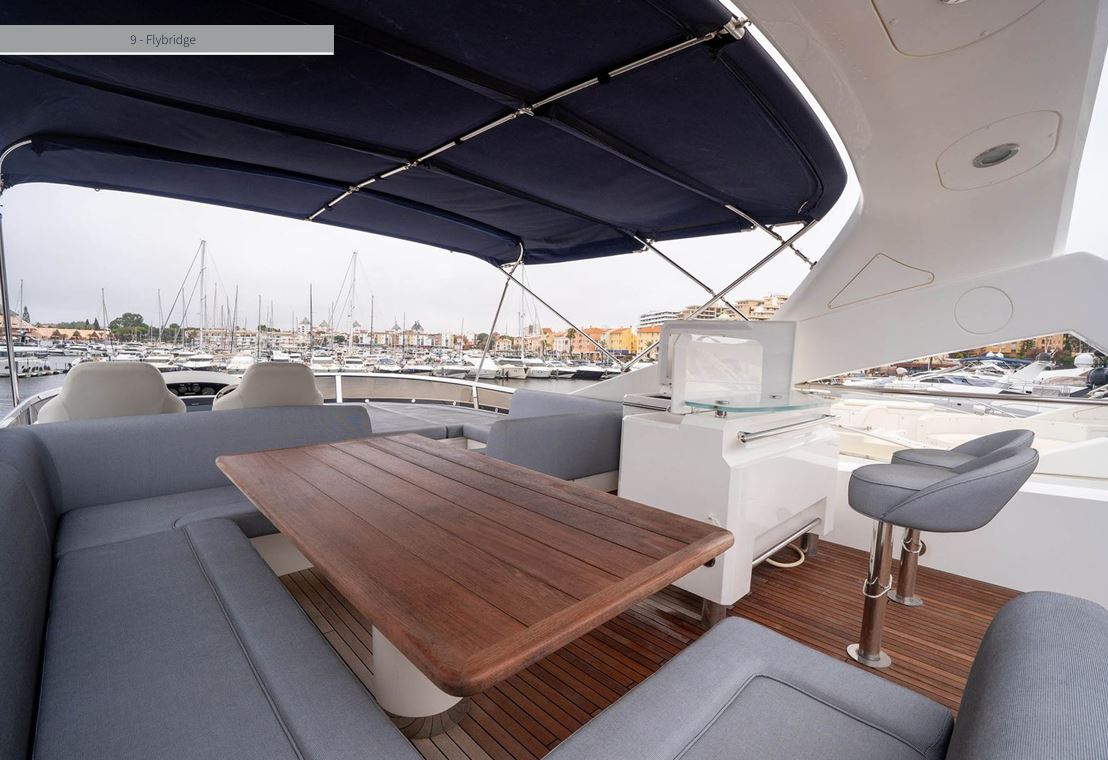

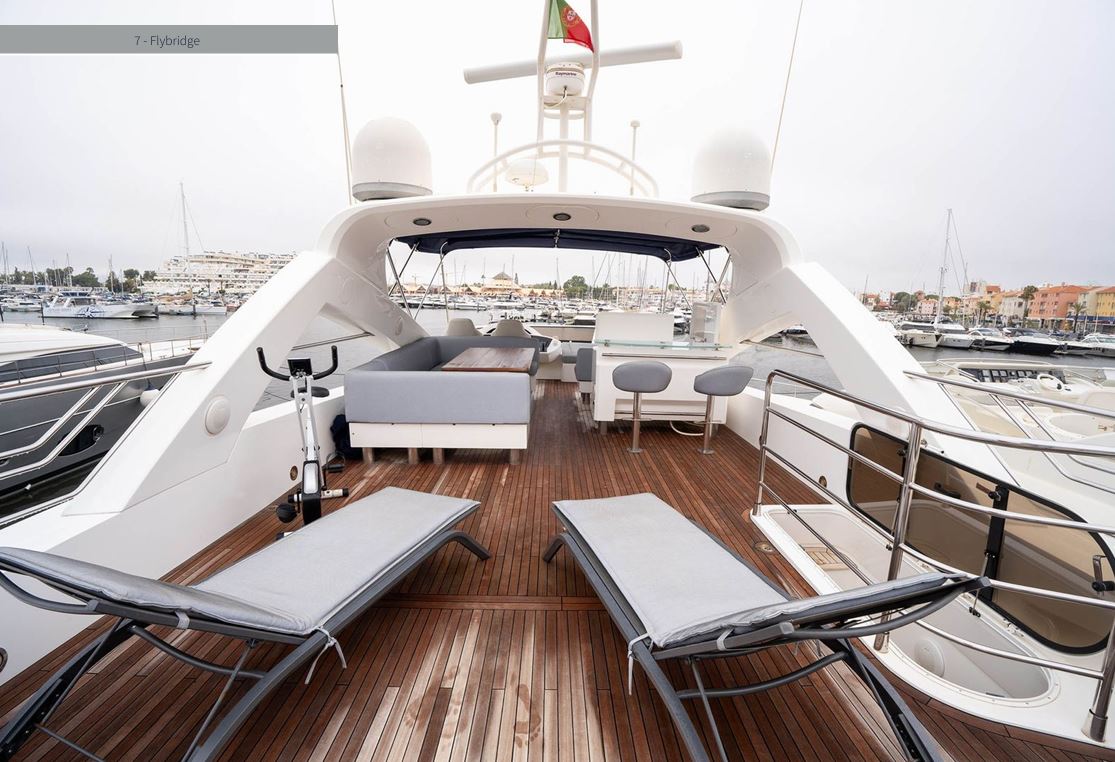

Flybridge - Additional Items
Low level Courtesy lights for side decks, aft cockpit, steps leading to flybridge and steps leading to Bathing platform to be Timage Orion Blue lights. (Flybridge low level lights to be Timage Orion white lights) in lieu of Std
Companionway hatch at top of stairs from aft cockpit to flybridge deck
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Bimini in Navy Blue Canvas on a stainless steel framework - Bimini not to cover helm seats (as per 1060986)
Hydraulic Flybridge Crane for launch and recovery of Jet Ski - 400 kg maximum lift capacity
2.4 meter Whip Aerial for FM Radio to match VHF Aerial on Radar arch Spa Tub installation with Custom design built-in sunbathing area on the Flybridge aft deck. Spa tub to have cushion on lid.
Water purifier for icemaker - General Ecology Ultrafine in-line systems one for each Icemaker
Forward, inboard corner of Spa tub sunbathing custom moulding to radiused Deck wash socket and tap housing to be re-located to inner face of outboard section of flybridge wetbar
Port side U shaped seating to be reduced fore and aft (by replacing Box B prt no: 317491 x2 with Box C prt no: 317492 x2) Spa tub moulding to be moved forward with seating
Custom Flybridge table with GRP pedestal, natural teak top and 2 x folding leaves to fill shortened U-shaped seating
Single AC socket within Waterproof enclosure to be fitted inside flybridge wetbar locker
Bose upgrade for Flybridge - 4 x Bose 131 speakers powered by 2 x Bose SA2 amplifiers allowing for Zone control of the Saloon Bose system with the Bose PMCII remote
Flybridge Cockpit Teak Decking

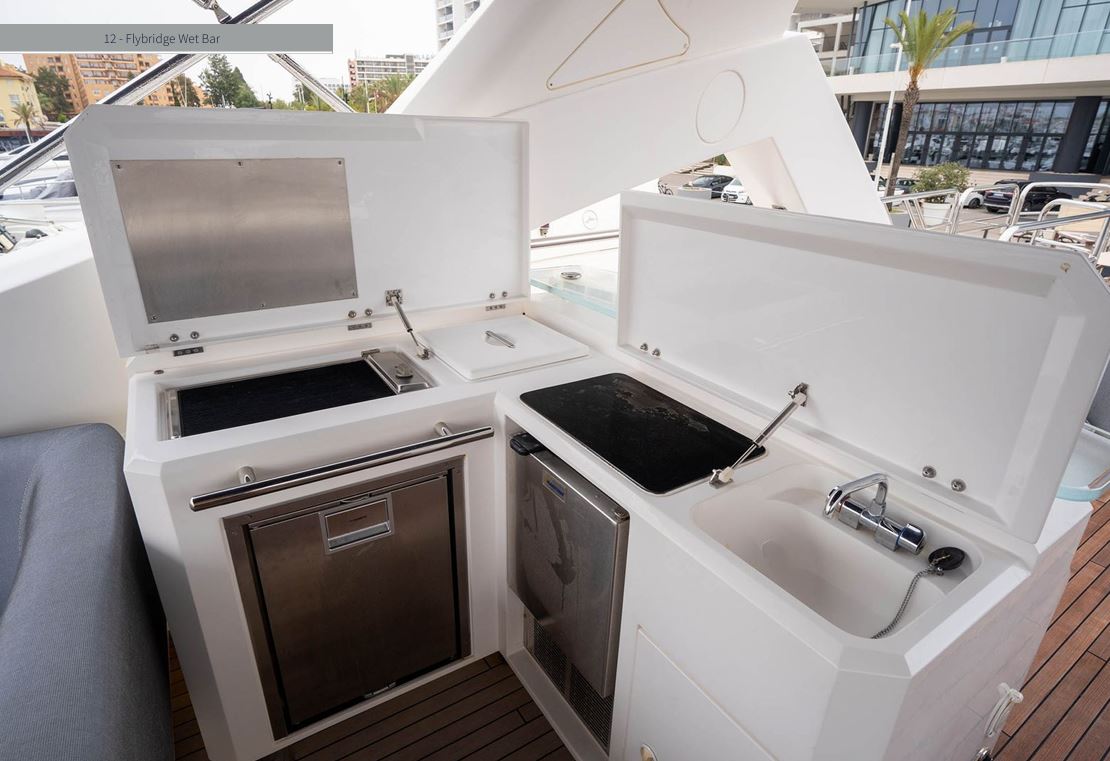

Flybridge wetbar upgrade with raised shelf (Clear Glass) and two bar stools in lieu of std

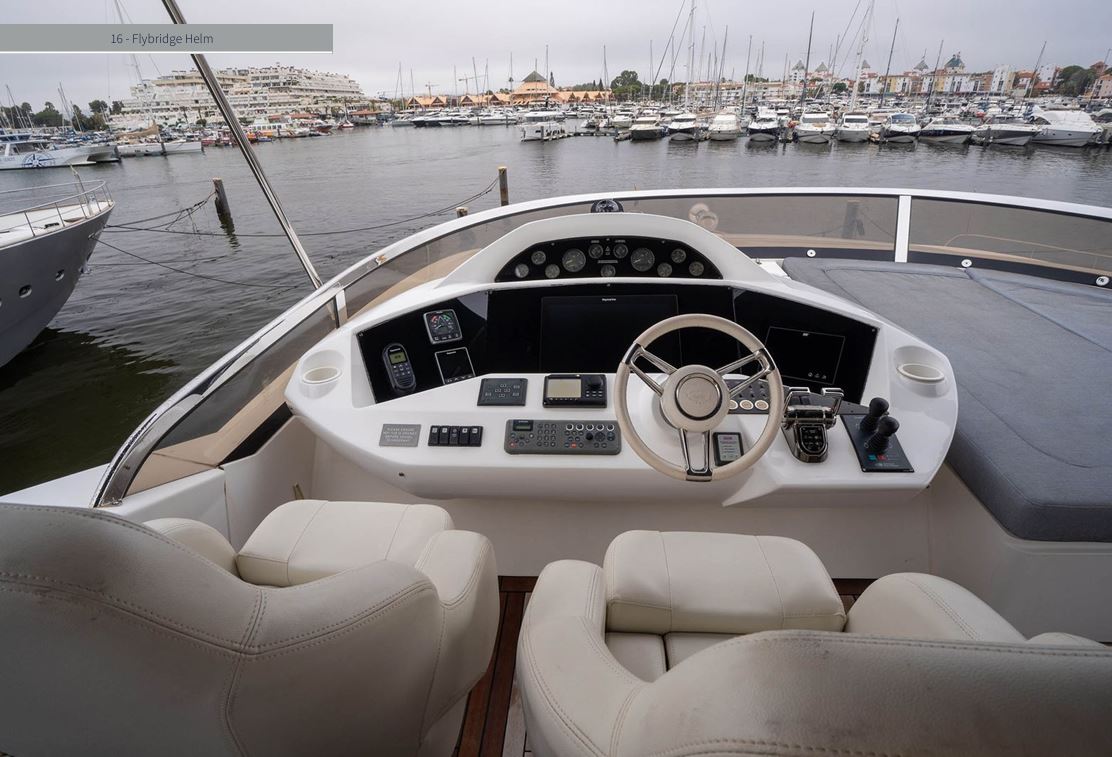

Flybridge Helm - Additional Items
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Caterpillar Colour Marine Power displays (MPD), 1 x on Flybridge Console and 2 x on Main helm, in lieu of standard displays
Simrad RS87 DVHF, Tri station (Main helm, Flybridge helm and Stern crew mess)
Deck - Additional Items
Low level Courtesy lights for side decks, aft cockpit, steps leading to flybridge and steps leading to Bathing platform to be Timage Orion Blue lights. (Flybridge low level lights to be Timage Orion white lights) in lieu of Std
Single AC socket within Waterproof enclosure to be fitted inside coach roof portside locker. To be fitted on forward face of locker
Bose upgrade for Foredeck - 2 x Bose 131 speakers powered by 1 x Bose SA3 amplifier allowing for Zone control of the Saloon Bose system with the Bose PMCII remote (only available if Bose 48 is selected for the saloon)
Twin Anchor arrangement at Bow (2 x Muir VRC4500 windlass in lieu of std. 1 X 80kg anchor with 100 metres 12mm diameter chain. 1 X 50kg anchor with 60 Meters 12mm of galvanised chain) in lieu of standard

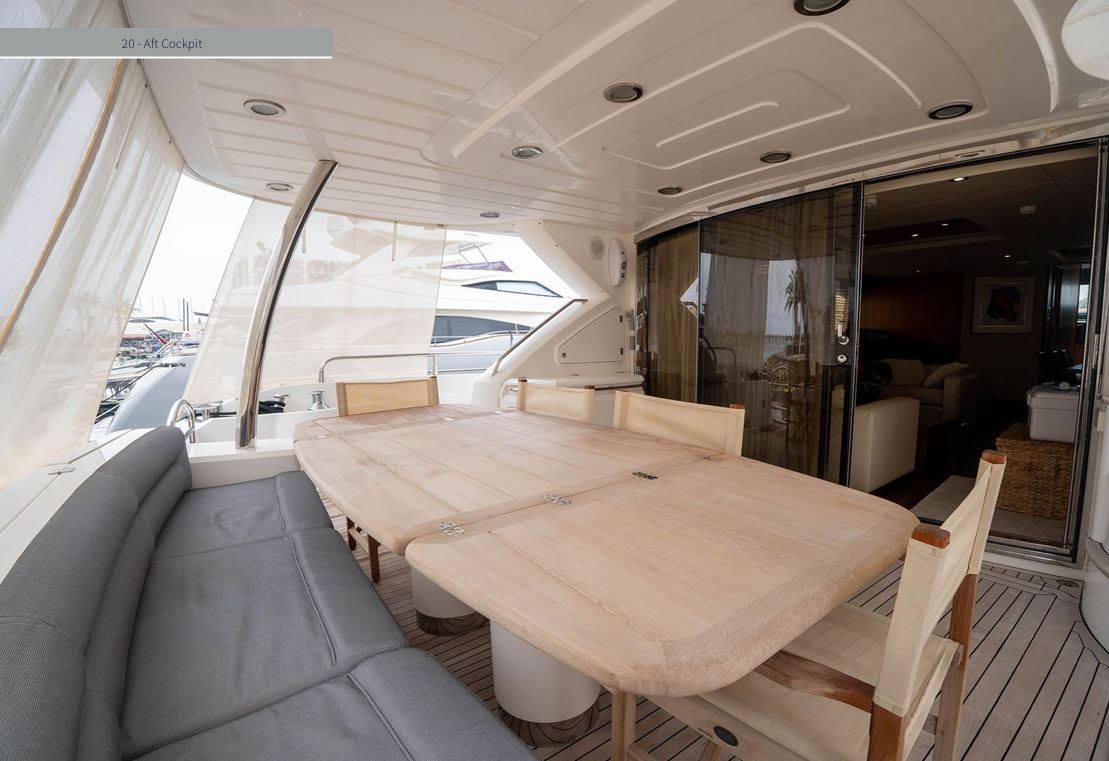

Aft Cockpit – Additional Items
Low level Courtesy lights for side decks, aft cockpit, steps leading to flybridge and steps leading to Bathing platform to be Timage Orion Blue lights. (Flybridge low level lights to be Timage Orion white lights) in lieu of Std
Create access hatch through back of Wetbar locker with inspection panel fitted, to allow access into void behind
Companionway hatch at top of stairs from aft cockpit to flybridge deck
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Engine controls, third fixed station throttle controls stop keys and thrusters control in aft cockpit
Single AC socket within Waterproof enclosure to be fitted inside Aft Cockpit wetbar locker
Bose upgrade for Aft Cockpit - 4 x Bose 131 speakers powered by 2 x Bose SA2 amplifiers allowing for Zone control of the Saloon Bose system with the Bose PMCII remote
Aft Capstans to be Muir
Bathing Platform – Additional Items
Low level Courtesy lights for side decks, aft cockpit, steps leading to flybridge and steps leading to Bathing platform to be Timage Orion Blue lights. (Flybridge low level lights to be Timage Orion white lights) in lieu of Std
Chocks on Platform for Tender, Avon 430 JET SC DL
Pair of Retractable Cleats for tender on port and stbd corners of platform
Passerelle 383.50W-86Y-R 5M White (488525) in lieu of std
Avon 430 JET SC DL
Bathing ladder lid needs weighting to stop it floating up when platform submerged
Bottom section of the stern moulding (level with the Bathing Platform when platform is in the up position) to be sprayed Navy Blue GCN/5810H to match the hull and platform
Covers – Additional Items
Bimini in Navy Blue Canvas on a stainless steel framework - Bimini not to cover helm seats (as per 1060986) Saloon and Dining Air Conditioning air handlers upgraded to quieter running AHDC units
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess
DVD - Bose Lifestyle 48 DVD/CD Surround System in lieu of Standard Surround System for the Saloon
All speakers to be recessed above headlining
Galley door and Frame to be finished in Silver on galley side and American Walnut - satin finish on Saloon side
Lower saloon area flooring to be W701 Black Walnut wide plank Amtico, upper area to be Desert Velvet carpet
Drinks cabinet with Glassware stowage for 12 (12 x champagne, 12 x whisky, 1 x Decanter), in lieu of std.

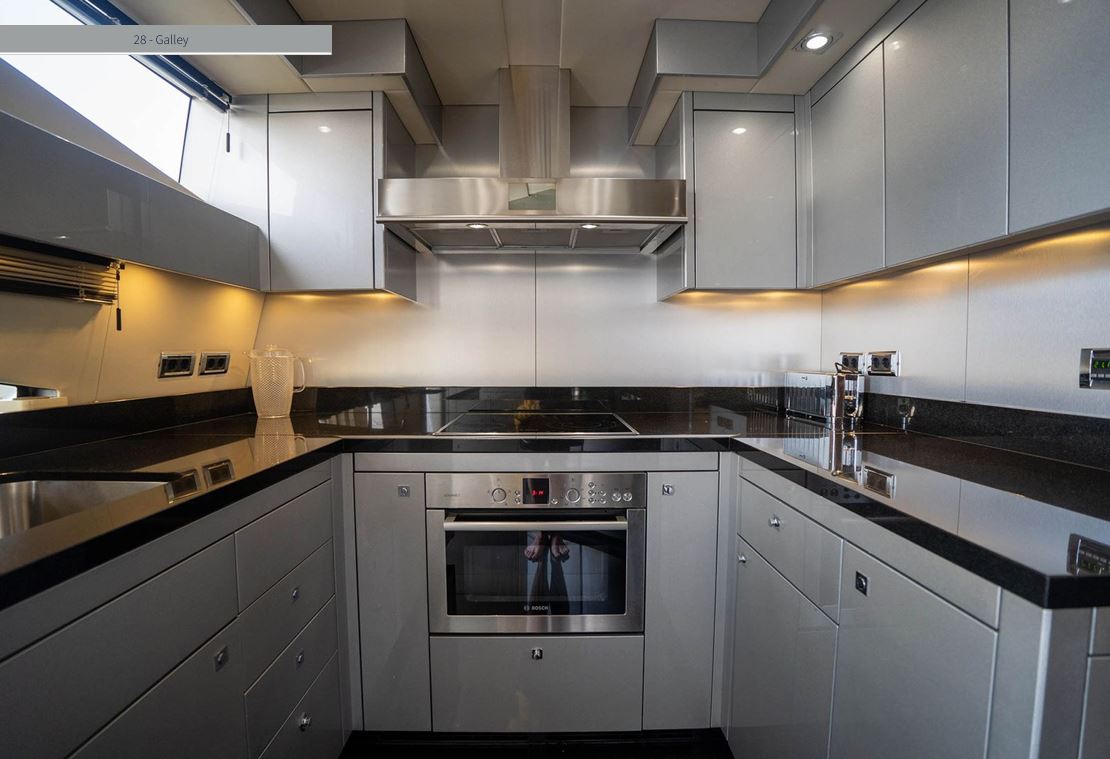

Galley – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units Galley door and Frame to be finished in Silver on galley side and American Walnut - satin finish on Saloon side; Crockery and Cutlery set (12 place setting), in lieu of std.
Day Head – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units; Main deck day head option

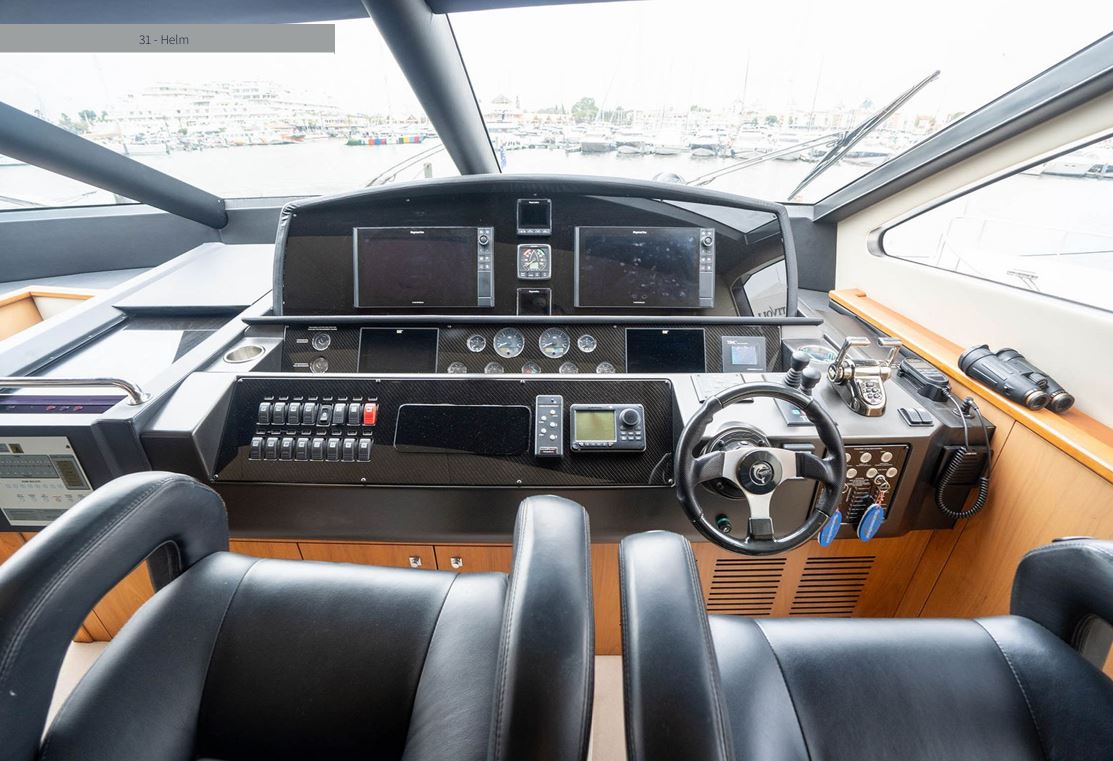

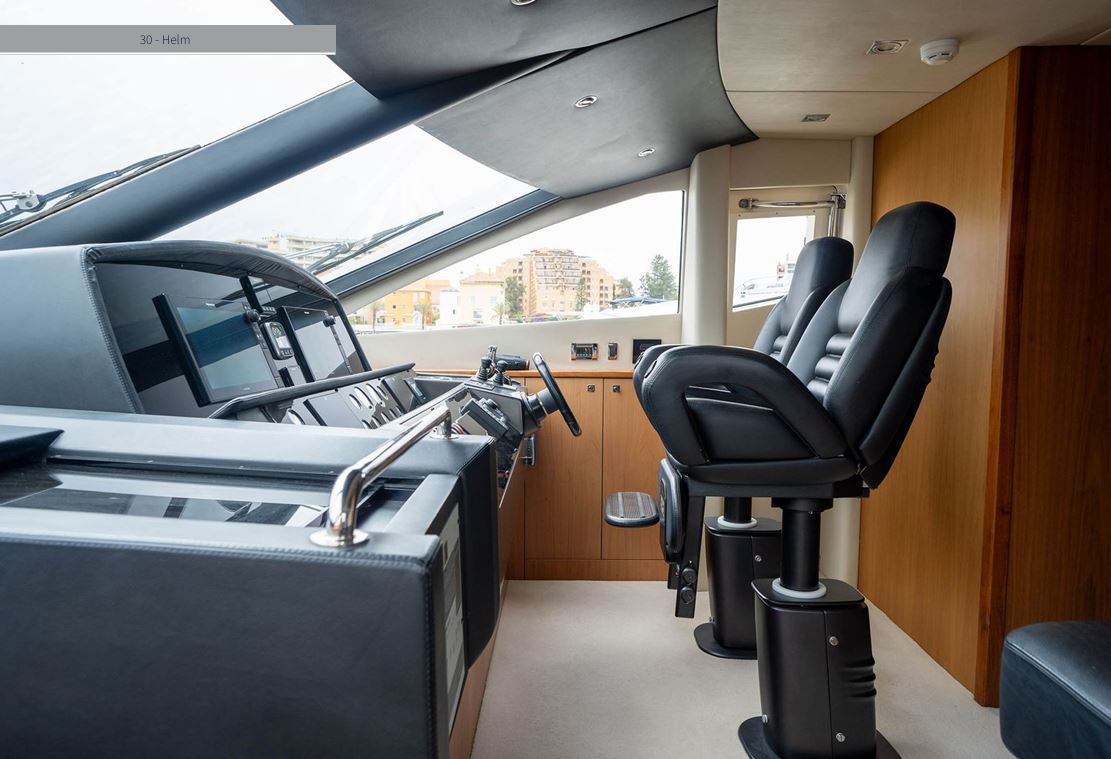

Main Helm Console & Observation Area
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Air Conditioning air handlers upgraded to quieter running AHDC units
Caterpillar Colour Marine Power displays (MPD), 1 x on Flybridge Console and 2 x on Main helm, in lieu of standard displays
Simrad RS87 DVHF, Tri station (Main helm, Flybridge helm and Stern crew mess) Stainless steel hand rail to be fitted to bridge the Helm distribution panel, fixed on the horizontal surface (David C. has picture showing position)
Steering wheel to be Carbon and Black Leather (143980)
Forward VIP Stateroom – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess DVD - Bose 321 series II CD/DVD Cinema Surround sound system linked to TV in lieu of standard DVD
Safe - 2 brick - with Digital lock
Stainless steel surround; Stainless steel surround required for bilge access hatch in Fwd VIP cabin leading to Bow Thruster

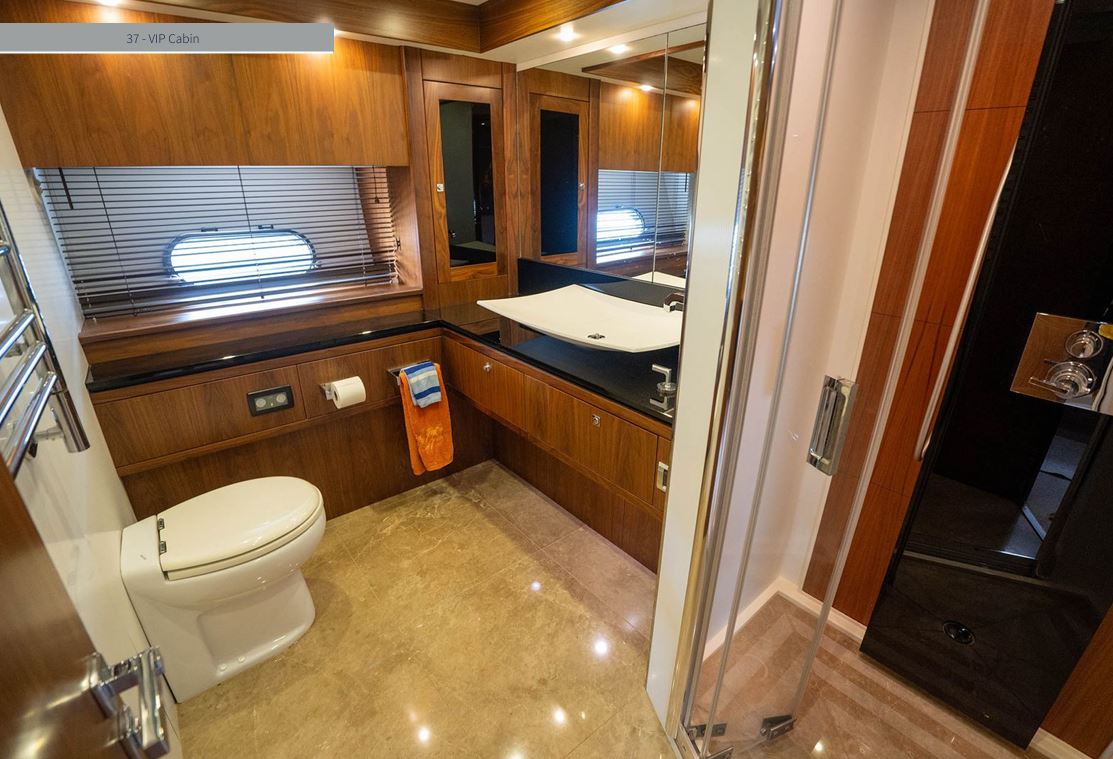

Forward VIP En suite – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units Heated towel rail (with 1 hour cut off timer), (for all en-suites 5 x in total)
Lower Deck Lobby – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
Stainless steel surround required for bilge access hatch in Lower lobby
Mid Starboard Guest Cabin – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess 3 piece organic window sets with two opening port lights (Mid Starboard Guest Cabin, Mid Port Guest Cabin, Aft Starboard Guest Cabin and Aft Port Guest Cabin), in lieu of standard

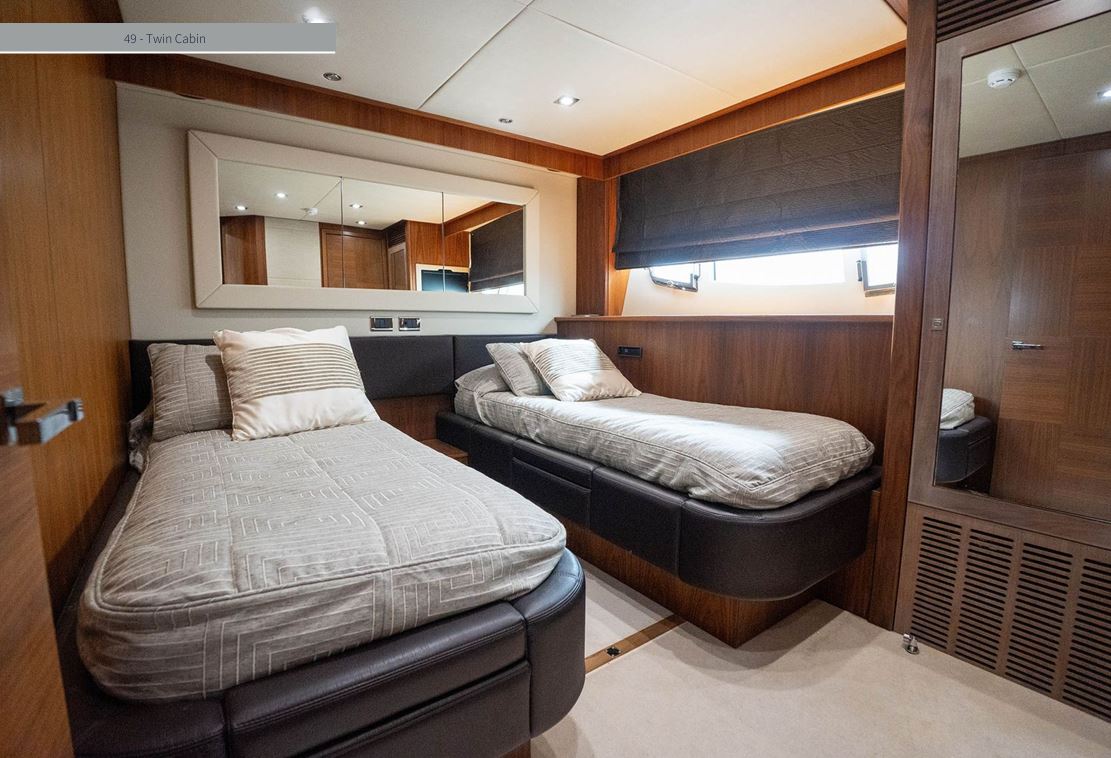

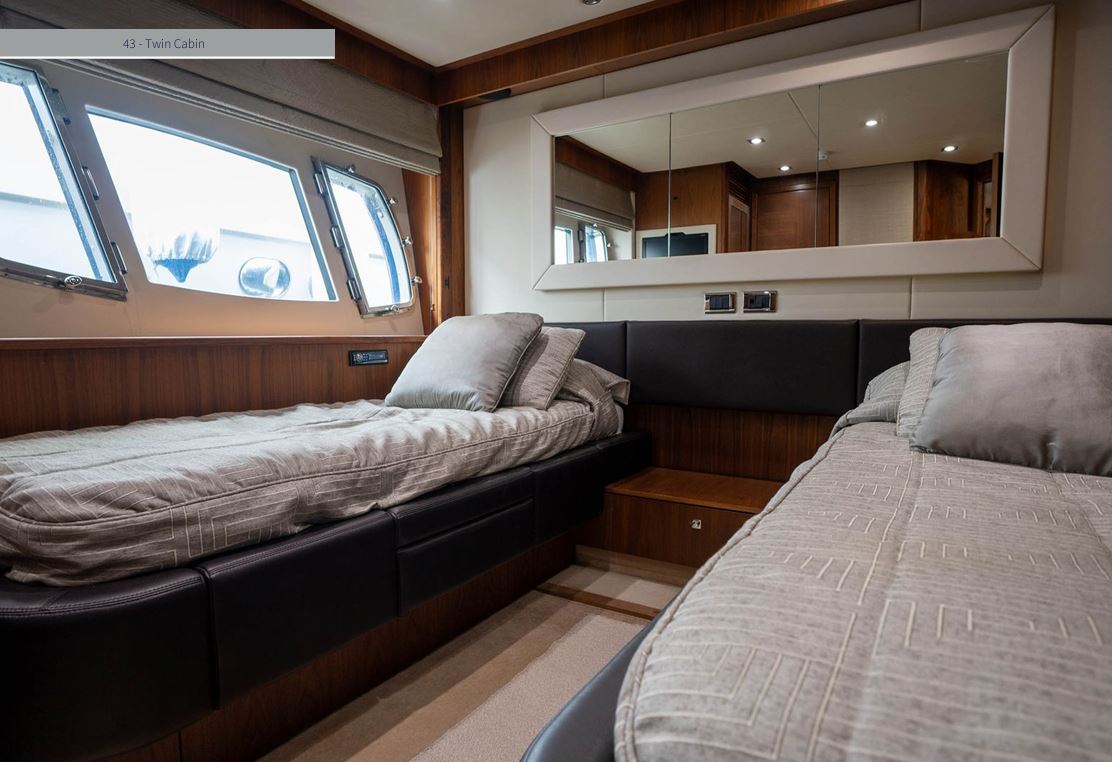

Twin Guest cabin option - Inboard berth moves out-board to create double berth
Stainless steel surround required for bilge access hatch in Mid Starboard Guest cabin. Aft of inboard bed
Mid Starboard En suite – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
Heated towel rail (with 1 hour cut off timer), (for all en-suites 5 x in total)
Mid Port Guest Cabin – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess 3 piece organic window sets with two opening port lights (Mid Starboard Guest Cabin, Mid Port Guest Cabin, Aft Starboard Guest Cabin and Aft Port Guest Cabin), in lieu of standard
Twin Guest cabin option - Inboard berth moves out-board to create double berth
Stainless steel surround required for bilge access hatch in Mid Port Guest cabin. Aft of inboard bed
Mid Port En suite – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
Heated towel rail (with 1 hour cut off timer), (for all en-suites 5 x in total)
Aft Starboard Guest Cabin – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
Hydraulics - Trac Star Digital fin stabiliser system (providing full roll control at speeds above 13 knots and significant roll reduction while at rest or anchor) System includes Trac thrusters providing simultaneous, proportional thrusting
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess in the Saloon and Dining, in the Forward VIP Stateroom, in the Mid Starboard Guest Cabin, in the Mid Port Guest Cabin, in the Aft Starboard Guest Cabin, in the Aft Port Guest Cabin, in the Stern Crew Mess, in the Electrical System, 3 piece organic window sets with two opening port lights (Mid Starboard Guest Cabin, Mid Port Guest Cabin, Aft Starboard Guest Cabin and Aft Port Guest Cabin), in lieu of standard
Twin Guest cabin option - Inboard berth moves out-board to create double berth in the Aft Starboard Guest Cabin
Aft Starboard En suite – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units; Heated towel rail (with 1 hour cut off timer), (for all en-suites 5 x in total)
Aft Port Guest Cabin – Additional Items
Air Conditioning air handlers upgraded to quieter running AHDC units
Hydraulics - Trac Star Digital fin stabiliser system (providing full roll control at speeds above 13 knots and significant roll reduction while at rest or anchor) System includes Trac thrusters providing simultaneous, proportional thrusting
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess Twin Guest cabin option - Inboard berth moves out-board to create double berth 3 piece organic window sets with two opening port lights (Mid Starboard Guest Cabin, Mid Port Guest Cabin, Aft Starboard Guest Cabin and Aft Port Guest Cabin), in lieu of standard
Aft Port En suite – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units; Heated towel rail (with 1 hour cut off timer), (for all en-suites 5 x in total)
Stern Crew Mess – Additional Items
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Air Conditioning air handlers upgraded to quieter running AHDC units
KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess See additional navigation specification
Simrad RS87 DVHF, Tri station (Main helm, Flybridge helm and Stern crew mess)
Starboard Crew Cabin – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units
Port Crew Cabin – Additional Items: Air Conditioning air handlers upgraded to quieter running AHDC units
Engine Compartment and Ancillaries – Additional Items
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Hydraulics - Trac Star Digital fin stabiliser system (providing full roll control at speeds above 13 knots and significant roll reduction while at rest or anchor)
System includes Trac thrusters providing simultaneous, proportional thrusting Passerelle 383.50W-86Y-R 5M White (488525) in lieu of std
Caterpillar Colour Marine Power displays (MPD), 1 x on Flybridge Console and 2 x on Main helm, in lieu of standard displays
Generators Upgraded to Two Kohler 27kw 50Hz with super silent sound shields in lieu of standard two Kohler 23kw 50Hz
Idromar Water Maker 180 litres per hour (MC3J-180)
Electrical - Seamless Transfer
Oil change system for engines gearboxes and generators
Standby fresh water pump - fitted using separate pick-up and strainer from tank feeding separately into main water circuit
Electrical System – Additional Items
Low level Courtesy lights for side decks, aft cockpit, steps leading to flybridge and steps leading to Bathing platform to be Timage Orion Blue lights. (Flybridge low level lights to be Timage Orion white lights) in lieu of Std
CCTV with 3 Cameras: 2 x Infra red located in the engine room plus 1 x camera located in the Aft cockpit facing aft. Image to be displayed on Nav screens at both upper and Lower helms. Crew mess to be fitted with 7" Panel mount LCD display with image from all Cameras
Engine controls, third fixed station throttle controls stop keys and thrusters control in aft cockpit
Air Conditioning air handlers upgraded to quieter running AHDC units Hydraulics - Trac Star Digital fin stabiliser system (providing full roll control at speeds above 13 knots and significant roll reduction while at rest or anchor) System includes Trac thrusters providing simultaneous, proportional thrusting : KVH M7 Satellite TV system with a dummy dome on the radar arch with feeds for 5 x Client supplied decoders: 1 in the Saloon, 1 in the Forward Cabin, 1 in the Aft Port Cabin (with feed going to Port Midships Cabin), 1 in the Aft Stbd Cabin (with feed going to Stbd Midships Cabin) and 1 in the Crew Mess in the Saloon and Dining, in the Forward VIP Stateroom, in the Mid Starboard Guest Cabin, in the Mid Port Guest Cabin, in the Aft Starboard Guest Cabin, in the Aft Port Guest Cabin, in the Stern Crew Mess, in the Electrical System, Passerelle 383.50W-86Y-R 5M White (488525) in lieu of std
See additional navigation specification
Caterpillar Colour Marine Power displays (MPD), 1 x on Flybridge Console and 2 x on Main helm, in lieu of standard displays in the Flybridge Helm, in the Main Helm Console & Observation Area, in the Engine Compartment and Ancillaries, in the Electrical System
Hydraulic Flybridge Crane for launch and recovery of Jet Ski - 400 kg maximum lift capacity
Generators Upgraded to Two Kohler 27kw 50Hz with super silent sound shields in lieu of standard two Kohler 23kw 50Hz
Idromar Water Maker 180 litres per hour (MC3J-180)
Burglar Alarm - Superyacht system - Sensors at all exterior access points with swipe type arming and disarming system
Underwater lights - xenon type (3 across transom, 1 aft each side)
Electrical - Seamless Transfer
2.4 meter Whip Aerial for FM Radio to match VHF Aerial on Radar arch DVD - Bose 321 series II CD/DVD Cinema Surround sound system linked to TV in lieu of standard DVD
DVD - Bose Lifestyle 48 DVD/CD Surround System in lieu of Standard Surround System for the Saloon
All speakers to be recessed above headlining in the Saloon and Dining, in the Electrical System
Spa Tub installation with Custom design built-in sunbathing area on the Flybridge aft deck. Spa tub to have cushion on lid.
Underwater Gear – Additional Items: HydraulicUnderwater Gear – Additional Items: Hydraulics - Trac Star Digital fin stabiliser system (providing full roll control at speeds above 13 knots and significant roll reduction while at rest or anchor) System includes Trac thrusters providing simultaneous, proportional thrusting Underwater lights - xenon type (3 across transom, 1 aft each side)
Miscellaneous – Additional Items: Five cabin layout; Black American Walnut wood finish interior in lieu of standard; Telescopic lightweight ladder for accessing the radar arch. (As used on the 34 Metre).
AV SPECIFICATION
Flybridge: Bose upgrade for Flybridge - 4 x Bose 131 speakers powered by 2 x Bose SA2 amplifiers allowing for Zone control of the Saloon Bose system with the Bose PMCII remote
Aft Cockpit: Bose upgrade for Aft Cockpit - 4 x Bose 131 speakers powered by 2 x Bose SA2 amplifiers allowing for Zone control of the Saloon Bose system with the Bose PMCII remote

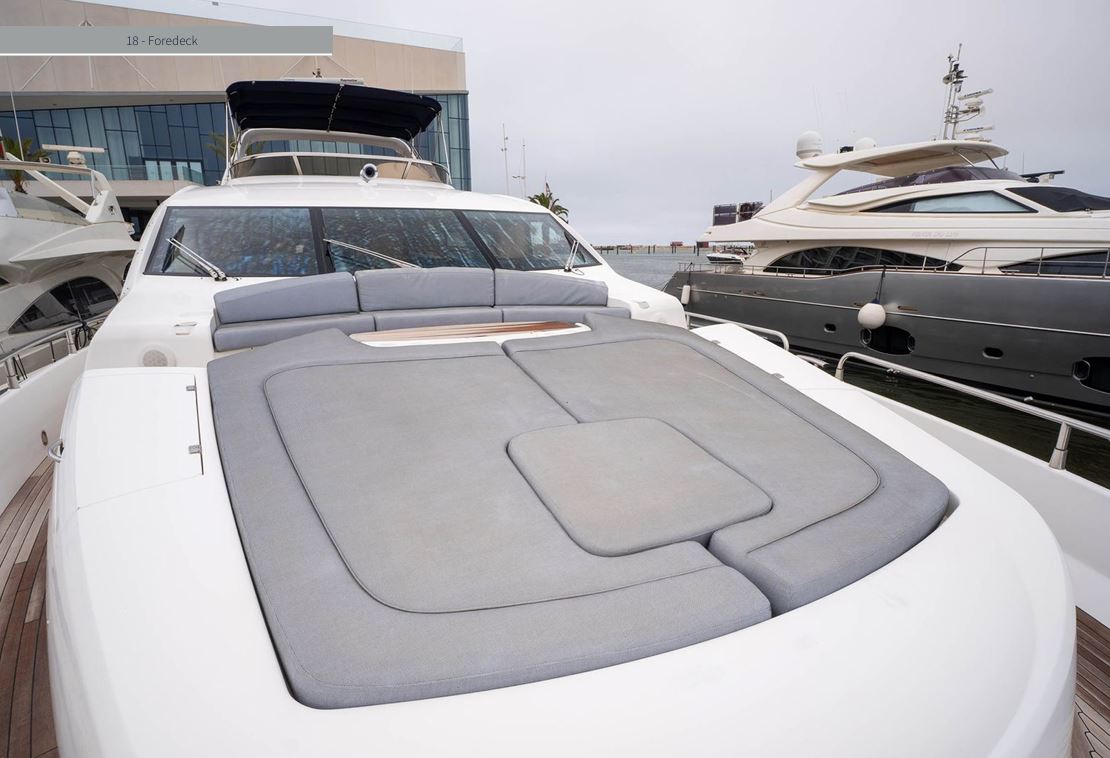

Fore deck: Bose upgrade for Foredeck - 2 x Bose 131 speakers powered by 1 x Bose SA3 amplifier allowing for Zone control of the Saloon Bose system with the Bose PMCII remote (only available if Bose 48 is selected for the saloon)

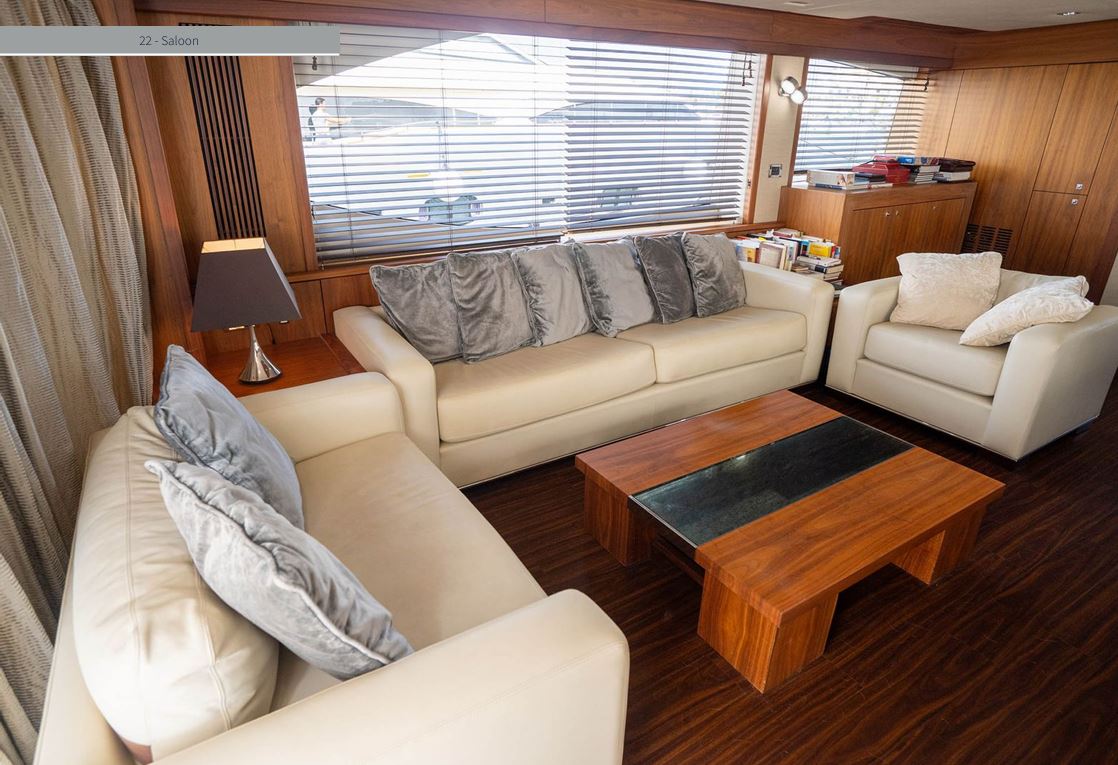

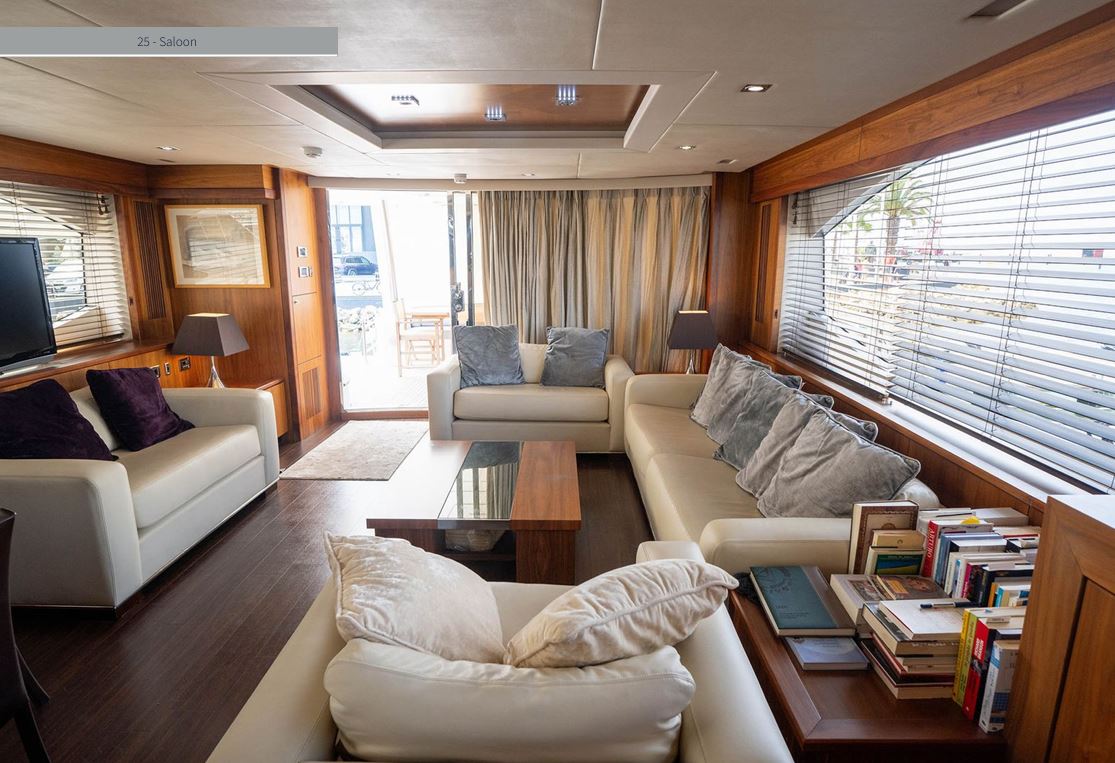

Saloon and Dining
LCD flatscreen television (42”) on rise and fall [42” Aquos LC-42X20E EU TV] DVD - Bose Lifestyle 48 DVD/CD Surround System in lieu of Standard Surround System for the Saloon
I-Pod docking station connected to surround sound system [Marantz I-Pod dock]
Forward VIP Stateroom: LCD flatscreen television (42”) on bulkhead [Sharp Aquos 42" LC-42x20E EU TV] DVD/CD/Radio surround sound system with two speakers and subwoofer [BOSE 321 – III EU]
Mid Starboard Guest Cabin , Mid Port Guest Cabin, Aft Starboard Guest Cabin, Aft Port Guest Cabin, Crew Mess: LCD flatscreen television (19”) [LCD TV-Sharp 19” EU TV LC19DIEBK) DVD/CD player [Alpine DVA 9861 RI-EU] with two speakers [Alpine SPE 1302]
Starboard Crew Cabin: CD/Radio [Alpine CDA-9884R] with two speakers [Alpine SPE 1302]
Navigation Package Breakdown: Non Raymarine Equipment: Simrad AP28 Autopilot, dual station; Simrad RS87 DVHF, Tri station (Main helm, Flybridge helm, Stern crew mess)
Raymarine Equipment: G120 12" Ultra Bright Marine Display; G150 15" Ultra Bright Marine Display; GPM400 - G-Series Processor Module – EU; GVM400 - G-Series Audio / Video Module; G-Series Command Center Keyboard (Wired); SeaTalk HS Network Switch; Raystar 125 GPS Antenna; 4KW Pedestal - HD Digital (includes VCM100); 72" Open Array – Digital; Digital Pedestal Cable (25m); AIS250 - AIS Receiver; ST70 3.5” Colour Instrument Display; ST70 Depth Transducer Pod; ST70 Speed Transducer Pod; ST70 Wind Transducer Pod; Wind Transducer; DSM 300 Sounder Module; B260 1kw Depth & Temp through hull transducer; SeaTalk HS network cable (20 metres); P19 LP TH Depth Txdr Dual Freq; ST800/P120 Thro Hull Speed TX; SeaTalk NG Backbone cable (20m); SeaTalk NG Backbone cable (5m); SeaTalk NG 5-way Connector; SeaTalk NG Power cable; SeaTalk NG Backbone terminator; SeaTalk 2 Junction Box - 5 way; SeaTalk Junction Box - 3 way; SeaTalk Extension Cable (5m); SeaTalk Extension Cable (20m); SeaTalk Extension Cable (1m); VGA to VGA cable (20m); SeaTalk HS Patch Cable (20m); SeaTalk HS Patch Cable (5m); SeaTalk HS Network Cable (1.5m); SeaTalk HS Patch Cable (1.5m); DVI to DVI (Digital) cable (5m); Spur Cable (3m); SeaTalk NG Backbone cable (3m)
